Announcement of the F-22’s low radar cross-section

The stealth of a fighter jet depends on its ability to minimize its visibility to enemy radar. In this area, the F-22 Raptor sets the standard. Its radar cross-section (RCS), i.e., the theoretical surface area it reflects back to radar waves, is estimated to be between 0.0001 m² and 0.0005 m². To give an idea of the scale, these values correspond to the signature of a flying insect or small bird, whereas a fourth-generation fighter such as the F-16 has an RCS of 5 m² and the F-15 has an RCS of 25 m². Lockheed Martin has indicated, according to several sources, that the Raptor’s frontal RCS can drop to around 0.0001 m², a level close to -40 dBsm. This figure reflects the performance obtained when the aircraft is observed from angles optimized by its design. This result places the F-22 in a unique category, where detection by conventional radars becomes extremely difficult, giving it a decisive tactical advantage during missions in contested environments.

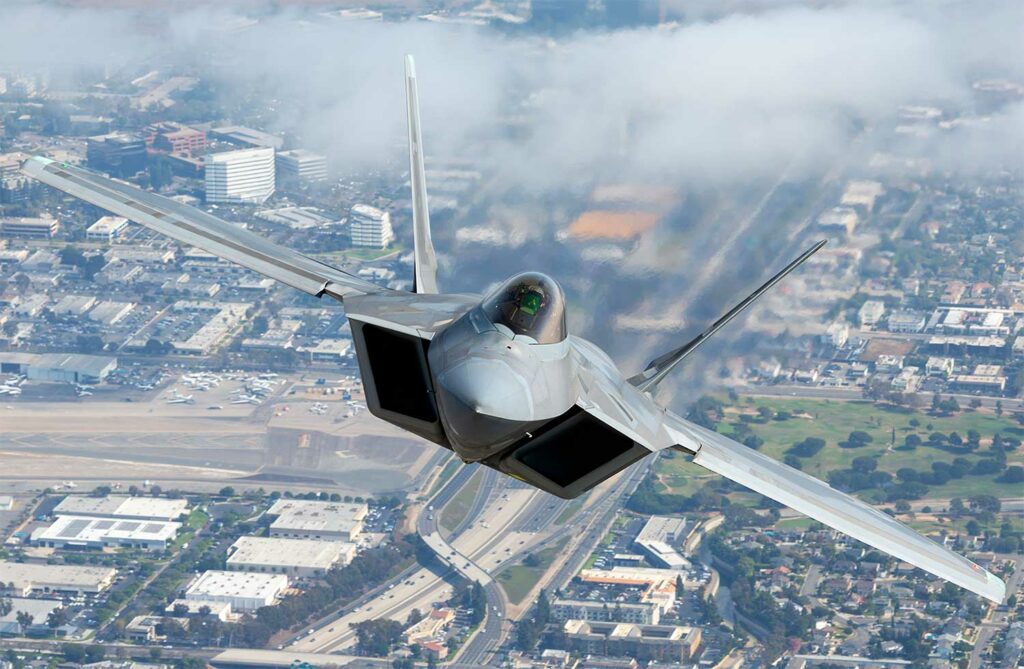

The stealth of the F-22 Raptor: minimal RCS, cutting-edge technology

RCS comparison: insect, bird, conventional fighters

To illustrate this reduction in radar signature, it is useful to compare:

  • Insect: average RCS of 0.00001 m².
  • F-22: RCS of approximately 0.0001 m², equivalent to a bumblebee or small insect.
  • Bird (e.g., a dove or small bird): RCS around 0.01 m².
  • 4th generation fighter such as the F-15: RCS of 25 m²; the F-16: approximately 5 m².

These figures show that the radar cross section of the F-22 Raptor is smaller than that of a bird, much smaller than that of any conventional fighter, and a hundred to a thousand times smaller than that of an F-16 or F-15.

The secret of the F-22’s stealth: shapes, materials, internal equipment

Shape and design

The F-22 derives its stealth from its geometric design. The alignment of the edges, the continuous curves, the diamond-shaped flaps, tapered contours, the application of the area rule to attenuate supersonic waves, and serpentine air intakes with S-ducts conceal internal components such as the engine fan.

Internal weapons bay

Weapons are stored inside closed internal bays except during launch, which significantly reduces reflective surfaces.

Radar-absorbing materials (RAM) & coatings

The F-22 uses radar-absorbing materials (RAM) and special coatings. Less dependent on such materials than its predecessors, it nevertheless incorporates a signature monitoring system capable of detecting degradation in stealth, which is useful for anticipating surface repairs.

Reduction of IR and RF signatures

  • Its rectangular vectoring nozzle tips promote the mixing of exhaust gases with ambient air, reducing infrared emissions.
  • The anti-heat coating (topcoat) and active cooling system counteract the thermal signature of supersonic flight.
  • The radio transceiver systems are configured to limit detectable emissions. The AN/APG-77 AESA radar uses low probability of interception (LPI) scans, and its antenna is tilted backward to remain discreet.

Other anti-radar techniques

The F-22 takes every detail into account: the hinges, the pilot’s helmet equipment, everything is designed to be stealthy. It also features the Signature Assessment System, which monitors its electromagnetic discretion in real time.

The F-22 versus conventional radars: how does it disappear?

Conventional radar is designed to detect large targets, such as fourth-generation fighters. An F-15, with a radar cross section of 25 m², appears clearly on surveillance screens, while a medium-sized bird, estimated at around 0.01 m², can also be identified by modern surveillance radars. The F-22 Raptor, with an RCS estimated at only 0.0001 m², is in a completely different league. Its signature is so small that it practically blends in with the electromagnetic background noise. Under these conditions, detection systems can only spot it at very short range, sometimes only when it is directly approaching the radar antenna. This means that the Raptor can operate in a monitored space without being detected, even though a conventional aircraft would be visible from several hundred kilometers away. This ability to discreetly cross areas covered by enemy radars explains why its stealth remains a major strategic weapon, allowing the aircraft to maintain the initiative in contested environments.

The effectiveness of stealth: range and tactical context

Sensitivity depending on angles

The figure of 0.0001 m² often corresponds to an optimized front view. Other angles may reveal more surface area and thus increase the effective RCS.

Radar frequencies: high vs. low

The technologies used are primarily designed to counter high-frequency binary radars carried by enemy fighters. However, low-frequency radars (early warning, weather) can still detect an F-22 due to its physical size.

The stealth of the F-22 Raptor: minimal RCS, cutting-edge technology

F-22 technology integration: stealth and operational capabilities

The F-22 is not only stealthy. It combines advanced avionics and sensor fusion: AESA radar, electronic self-protection systems, IR detection, secure data links… all contributing to the exceptional radar performance of the F-22 Raptor.

Stealth redefined compared to other aircraft

Type of object/aircraftApproximate RCSVisual radar equivalent
Insect0.00001 m²Radar invisible
F-22 Raptor0.0001 m²Bumblebee or small insect
Bird (~dove)0.01 m²Small bird
F-16 (4th G)5 m²Conventional fighter
F-15 (4th G)25 m²Highly visible fighter

These values demonstrate the extraordinary reduction in radar signature of the F-22, the result of a stealth fighter design combining geometry, materials, technology, and active stealth.

A constantly evolving stealth horizon

The F-22 remains a benchmark in aerial stealth. With developments such as new coatings (e.g., chrome surfaces tested to reduce IR), it illustrates the ongoing convergence between tactical performance and invisibility. It paves the way for future standards where electromagnetic discretion, combined with sensory superiority, becomes the key. Here we can see the rise of a stealth aircraft whose RCS is so low that it seems to defy the traditional principles of aerial detection.
